Taxi Top LED Screen
-
Introduction
Introduction
| ITEM | HD OUTDOOR TAXI TOP LED SCREEN | ||||
| Product model | P2.5mm | P3.33mm | P4mm | P5mm | P6.67mm |
| Physical density | 160000/m2 | 90000/m2 | 62500/m2 | 40000/m2 | 22500/m2 |
| Pixel configuration | 1R1G1B | ||||
| LED Package | Nation Star SMD 1415 (3in1) | SMD1921(3in1) | SMD2727(3in1) | SMD3535(3in1) | |
| Module size | 320mm*160mm | ||||
| Modules resolution | 128*64 | 96*48 | 80*40 | 64*32 | 48*24 |
| Modules weight | 0.48kg±0.01kg | ||||
| Driving method | 1/16S | 1/12S | 1/10S | 1/8S | 1/6S |
| Interface definition | HUB-16P | ||||
| Cabinet size | 960mm*320mm*135mm(1054mm*403mm*190mm/1090mm*435mm*167mm)double sides | ||||
| Cabinets weight | 28KG | ||||
| cabinets resolution | 768*128 | 576*96 | 480*80 | 384*64 | 144*48 |
| Brightness | ≥5000cd/m2 | ≥6000/m2 | ≥6500cd/m2 | ||
| Gray level | 16-65536 adjustment | ||||
| Refresh rate | ≥3840HZ | ||||
| Viewing angle Level | H:≥140°Optional,V:≥120°Optional | ||||
| Driving IC | 1CN2055 | ||||
| Maximum power consumption | ≤900W/PCS | ≤660W/PCS | ≤510W/PCS | ≤468W/PCS | ≤510W/PCS |
| Maximum current | 10A±0.05 | 11±0.05A | 8.5±0.05A | 7.8±0.05A | 8.5±0.05A |
| Maximum power of unit board | ≤50W | ≤55W | ≤42.5W | ≤39W | ≤42W |
| Mean free error time | ≥5000 hours | ||||
| Average power consumption | ≤450W/PCS | ≤300W/PCS | ≤25OW/PCS | ≤230W/PCS | ≤250W/PCS |
| Lifetime | 75000~100,000 hours | ||||

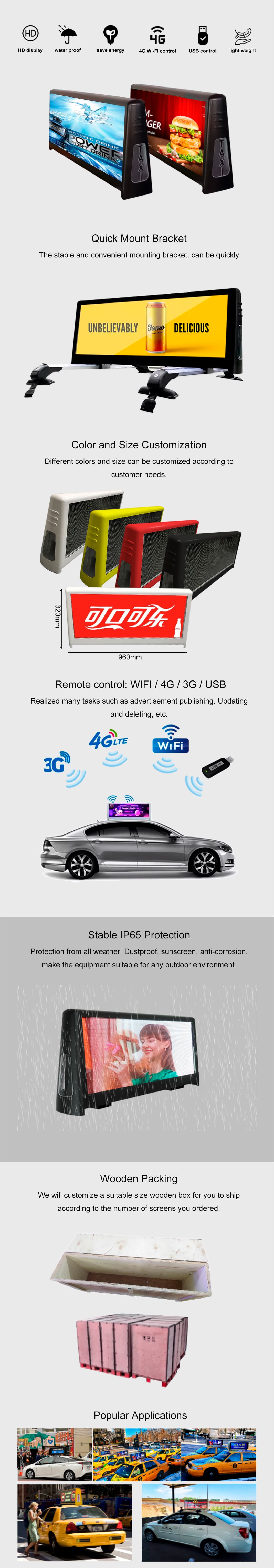

Details:
1. Features:
High ingress protection
Super slim and light
Super bright, clear image picture
Matting material, zero light reflection
Energy efficient
High Reliability
Easy to install and maintenance
2. Quick Mount Bracket
The stable and convenient mounting bracket, can be quickly installed on the top of the taxi.
3. Color and Size Customization
Different colors and size can be customized according to customer needs.
4. Remote control: WIFI / 4G / 3G / USB
Realized many tasks such as advertisement publishing. Updating and deleting, etc.
5. Stable IP65 Protection
Protection from all weather! Dustproof, sunscreen, anti-corrosion, make the equipment suitable for any outdoor environment.
6. Wooden Packing
We will customize a suitable size wooden box for you to ship according to the number of screens you ordered.
7. Popular Applications
