ITEM

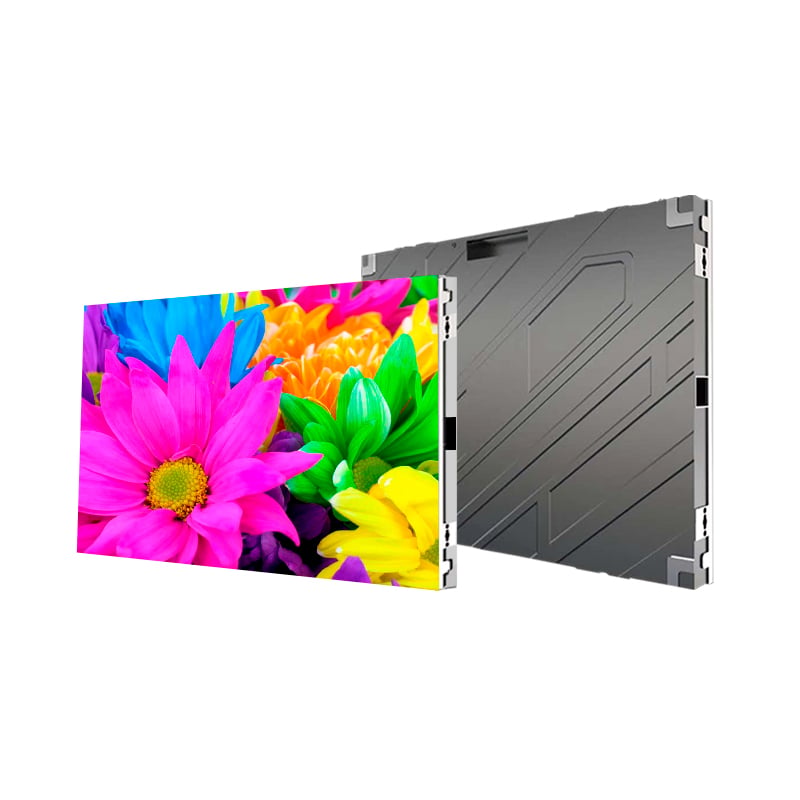

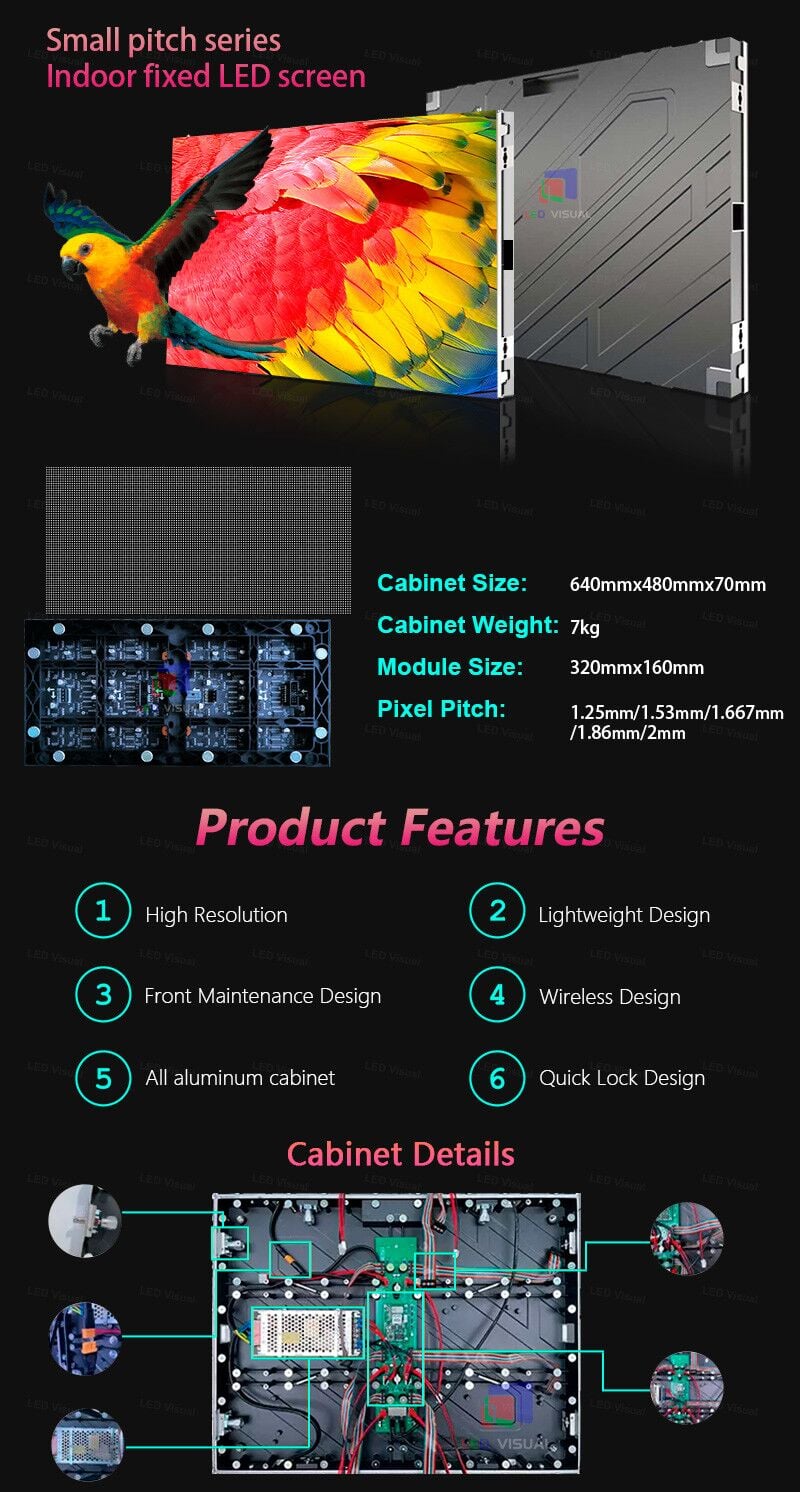

HD SMALL PIXEL PITCH INDOOR LED SCREENS

Product model

SJ-P1.25

SJ-P1.56

SJ-P1.667

SJ-P1.923

SJ-P1.875

SJ-P1.904

SJ-P2

Pixel pitch

1.25mm

1.56mm

1.667mm

1.923mm

1.875mm

1.904mm

2mm

Physical density

640000/m²

409600/m²

360000/m²

270400/m²

284444/m²

275835/m²

250000/m²

LED Package

SMD 1010 (3in1)

SMD 1010 /1212(3in1)

SMD1515 (3in1)

Module size

200mm*150mm

240mm*240mm

160mm*160mm

256mm*128mm

Modules resolution

160*120

128*96

120*90

104*52

128*128

84*84

128*64

Modules weight

0.3kg

0.31kg

0.28kg

0.32kg

Driving method

1/30S

1/32S

1/30S

1/26S

1/32S

1/28S

1/32S

Interface definition

HUB-26P

HUB-16P

HUB-16P

HUB-26P

HUB-16P

Cabinet size

400mm*300mm*85mm

480mm*480mm*85mm

512mm*512mm*85mm

Cabinets weight

4kg

5kg

5.8kg

Cabinets resolution

320*240

256*192

240*192

208*156

256*256

252*252

256*256

Equilibrium brightness

800-1000cd/m²

Power consumption

Max: ≤830W/m², Average: ≤420W/m²

Max: ≤860W/m², Average: ≤430W/m²

Max: ≤970W/m², Average: ≤480W/m²

Refresh rate

≥3840Hz (ICN2055 Driving IC)

Viewing angle Level

H: ≥160°Optional, V: ≥120°Optional

Viewing distance

1-30m

Temperature

Working : -25℃~60℃, Storage: -35℃~80℃

Humidity

10%~90%

Working voltage

Input: AC 100V~240V, 50Hz/60Hz, Output: DC 5V

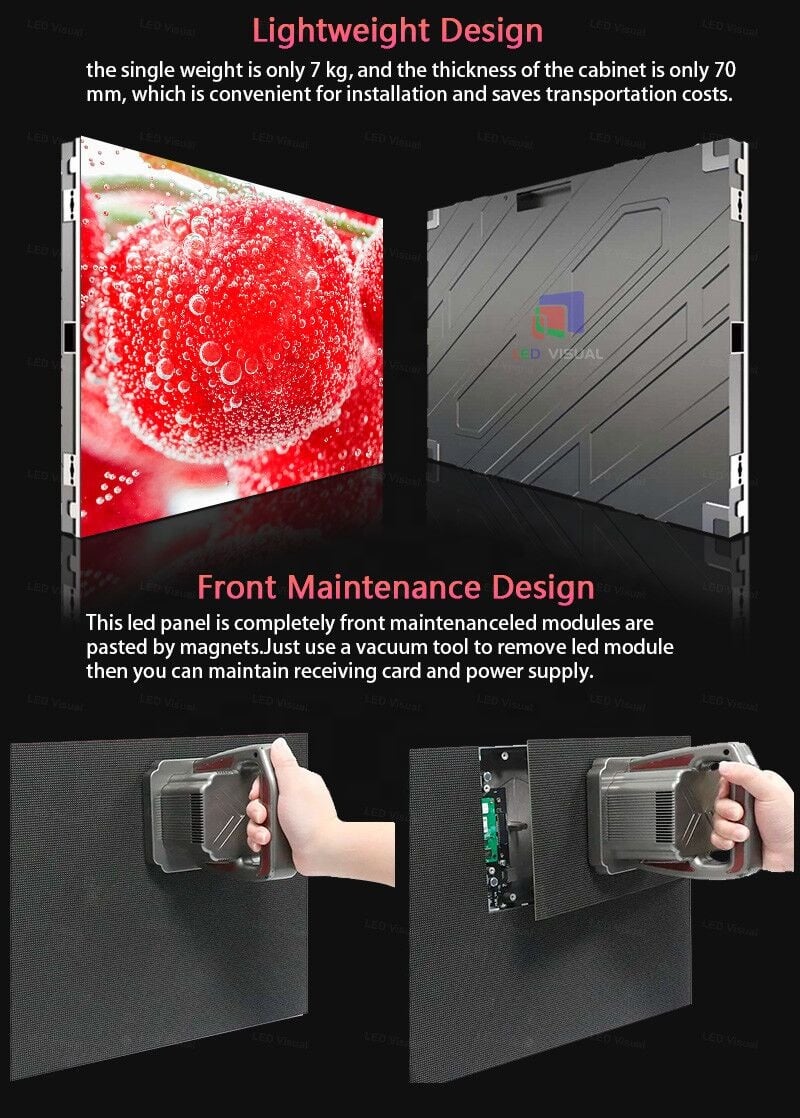

Maintenance method

Front/Back service

Protection grade

Front: IP40, Back: IP51

Lifetime

100000 Hours
