Spherical LED Screen
-
Introduction
Introduction
| Specification | P2.5 | P4 | P5 |
| Pixel Pitch | 2.5mm | 4mm | 5mm |
| Module Resolution | 96*48 | 64*32 | 64*32 |
| Pixel Configuration | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) |
| Pixel Density | 160000 Dots/M2 | 62500 Dots/M2 | 40000 Dots/M2 |
| Scan Mode | 24S | 16S | 16S |
| Refresh Rate | 1920Hz | 1920Hz | 1920Hz |
| Driving IC | MBI5124 | MBI5124 | MBI5124 |
| Grey Level | 14 Bits | 14 Bits | 14 Bits |
| Module Size | 240*120mm | 256*128mm | 320*160mm |
| Brightness | 500cd/M2 | 1500cd/M2 | 1500cd/M2 |
| Life Span | 50.000H | 50.000H | 50.000H |
| Working Temperature | -20- +60ºC | -20- +60ºC | -20- +60ºC |
| Working Humidity | 10%-95%RH | 10%-95%RH | 10%-95%RH |
| Warranty | 2year | 2year | 2year |
Details:
1. Small Pixel Pitch
Pixel Pitch:P1.875 P2.5 P3 P4 P5
Wide color gamut, High contrast, High gray scale, High refresh, suitable for indoor close-up viewing.

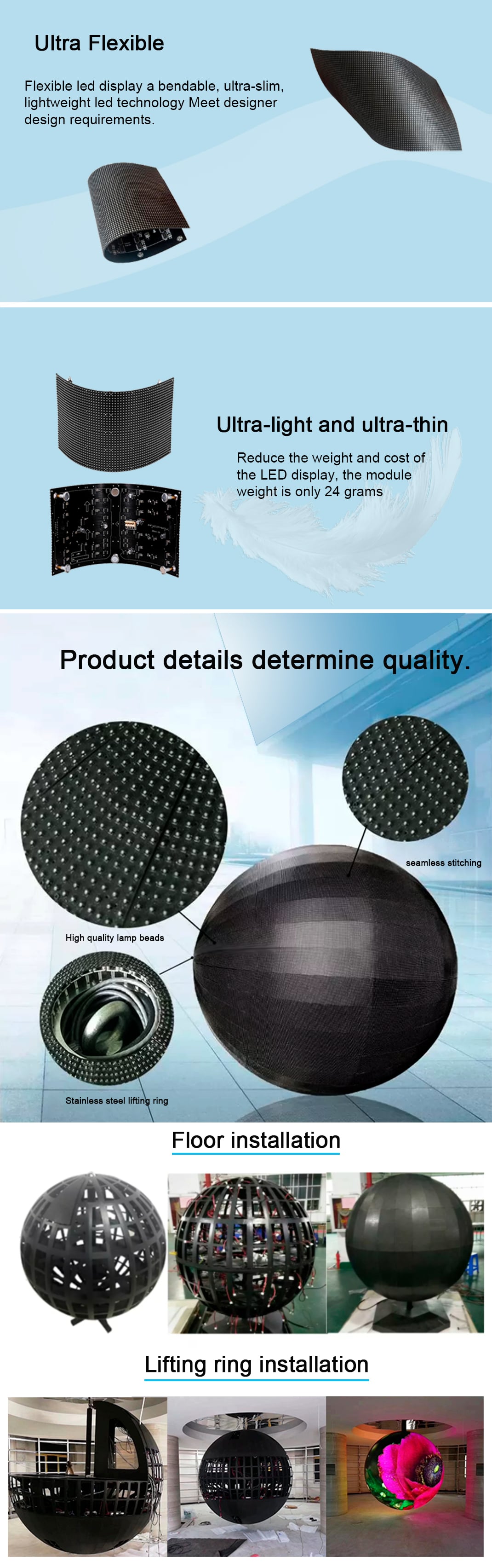

2. Ultra Flexible
Flexible led display a bendable, ultra-slim, lightweight led technology Meet designer design requirements.
3. Seamless Connection / Visual Experience
The use of trapezoidal circuit design, can achieve seamless splicing. When you turn on the spherical led screen, you will see a perfect seamless visual effect.
4. Easy to Disassemble and Maintain
The product adopts simple structure design, convenient installation, easy maintenance and high-strength wear-resistant anti-skid material.
5. Different Installation Methods
Provide a 360 degree view, support hanging installation, stand on ground or mobile using.
6. Personalized Design
According to customer needs, providing different diameter of the sphere
Diameter: 500mm/600mm/700mm/800mm/900mm/1000mm/1.1m/1.2M/1.3M/1.4M/1.5M/1.6M
The high-definition display effect creates a different visual effect and gives you a different experience.
