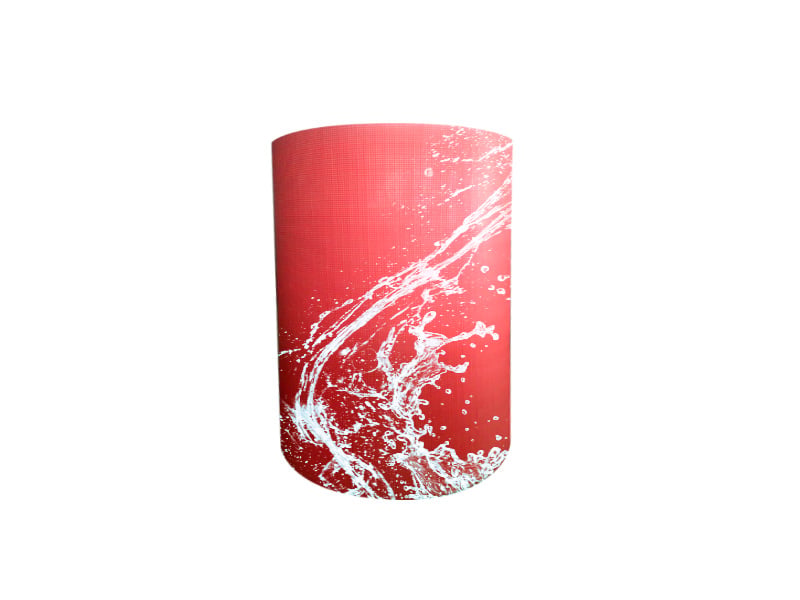

Outdoor Cylindrical LED Screen
-
Introduction
Introduction
| ITEM | OUTDOOR CYLINDRICAL LED SCREEN | |
| Product model | SJ-P5 | SJ-P10 |
| Pixel pitch | 5mm | 10mm |
| Physical density | 40000dots/m2 | 10000dots/m2 |
| LED Package | Nation Star SMD 2727(3 in 1) | Nation Star SMD 3535(3 in 1) |
| Module size | 40mm*320mm | |
| Modules resolution | 8*64 | 4*32 |
| Modules weight | 0.3KG | |
| Driving method | 1/8S | 1/4S |
| Interface definition | HUB-10P | |
| Cabinet size | 960mm*960mm | |
| Cabinets weight | 48kg/m2 | |
| cabinets resolution | 192*192 | 96*96 |
| Brightness | 6000cd-6500cd/m2 | 6500cd-7000cd/m2 |
| Refresh rate | ≥3840Hz (ICN2055 Driving IC) | |
| Viewing angle Level | H:≥160°Optional,V:≥120°Optional | |
| Viewing disance | 5-60m | 10-150m |
| Driving IC | 1CN2055 | |
| Maximum power consumption | Max:≤950W/m2,Average:≤520W/m2 | |
| Temperature | Working:-25℃-60℃，Storage:-35℃～80℃ | |
| Humidity | 10%~90% | |
| Working voltage | Input:AC 100V~240V,50Hz/60Hz,Output:DC 5V | |
| Maintenance method | Front/Back service | |
| Protection grade | Front:IP65, Back:IP65 | |
| Lifetime | 100, 000 hours | |
Details:

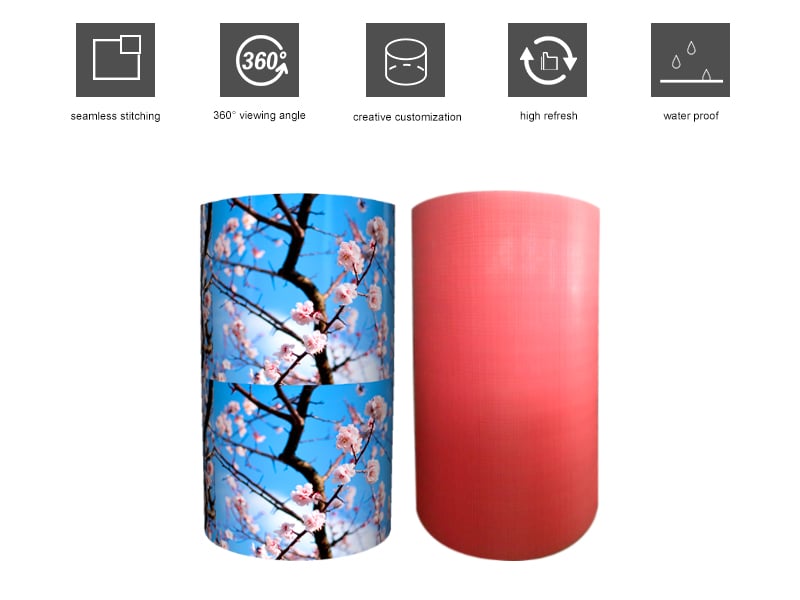

1. Feature:
360°round
Bendable, can be assembled at any irregular location
Super flatness&thin
Super bright and High contrast ratio
High protective grade and strong durability
Easy to splice,install and maintain
Low power consumption
Display diversification

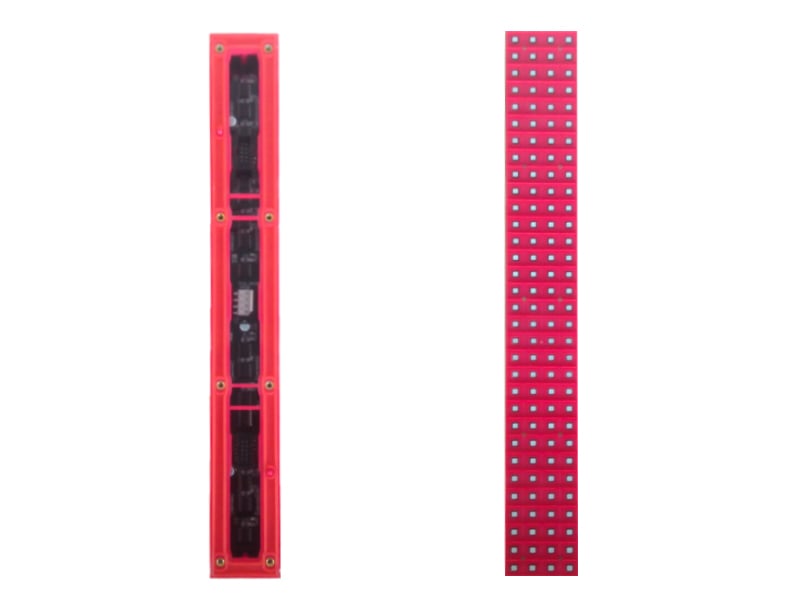

2. Lamp Bead
LED Encapsulation: 3535(3 in 1)
The pixels are made of 1R1G1B, high brightness, big angle, vivid color, under the irradiate of sun, the picture still clear, high definition, consistency, it have various colors. Can add the color of background, can show simple pictures and letters, meanwhile the price is suitable.

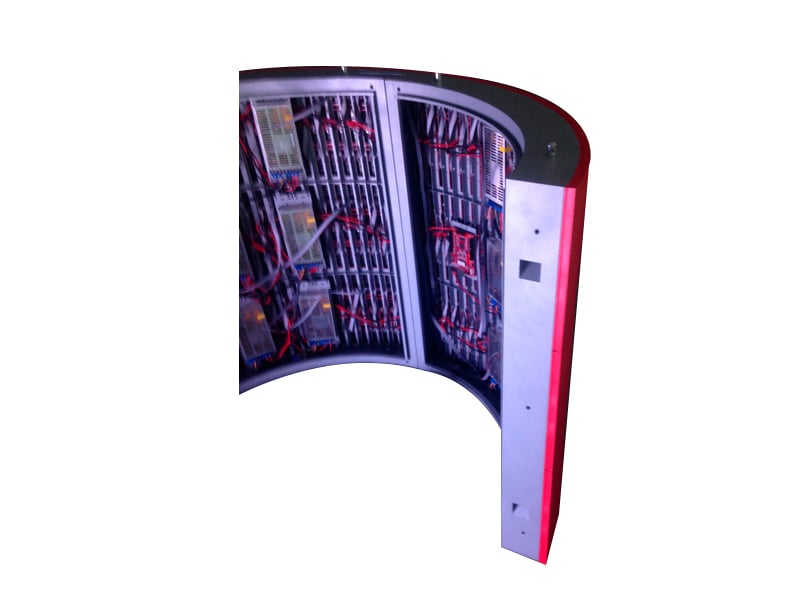

3. Ultra Flexible
Flexible led display a bendable, ultra-slim, lightweight led technology Meet designer design requirements; Soft module splicing, Suitable for cylinder, Arc, Spherical, S type and other irregular screen, large viewing Angle without color difference, Standard display proportion, The picture is not deformation.
4. IP rating reach IP65
Can use for ant outdoor environment, IPl65 water resistance keeps the screen intact even in harsh extreme environments.

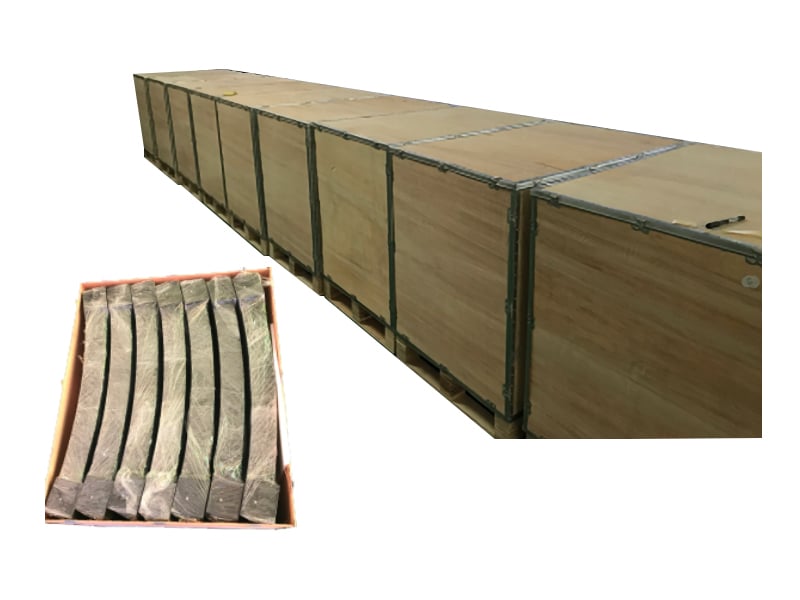

5. Wooden Case Packaging
For cylindrical LED screen, wooden case will be recommended, with 7 pieces in one wooden case, but can be customized as requested.

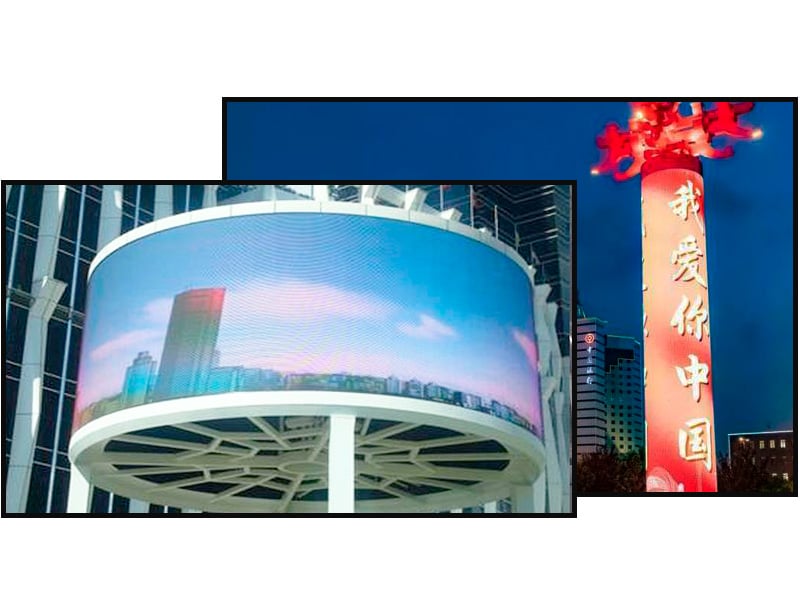

6. Application Field
Wide application can be used in so many fields and occasions, especially in all kinds of irregular. For example hotel advertising, stage renting television, shopping malls, big markets, outdoor stadiums, concerts, fairground, sightseeing districts, etc...
