Indoor Rental LED Display
-
Introduction
Introduction
| ITEM | HD INDOOR RENTAL INSTALLATION LED SCREENS | ||||
| Product model | SJ-P2.604 | SJ-P2.976 | SJ-P3.91 | SJ-P4.81 | SJ-P6.25 |
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm | 6.25mm |
| Physical density | 147456dots/m² | 112896dots/m² | 65536dots/m² | 43264dots/m² | 25600dots/m² |
| LED Package | Nation Star SMD 2020 (3in1) | SMD3528 (3in1) | |||
| Module size | 250mm*250mm | ||||
| Modules resolution | 120*120 | 128*64 | 104*52 | 80*40 | 64*32 |
| Modules weight | 0.5±0.01kg | ||||
| Driving method | 1/30S | 1/32S | 1/32S | 1/32S | 1/16S |
| Interface definition | HUB-16P | ||||

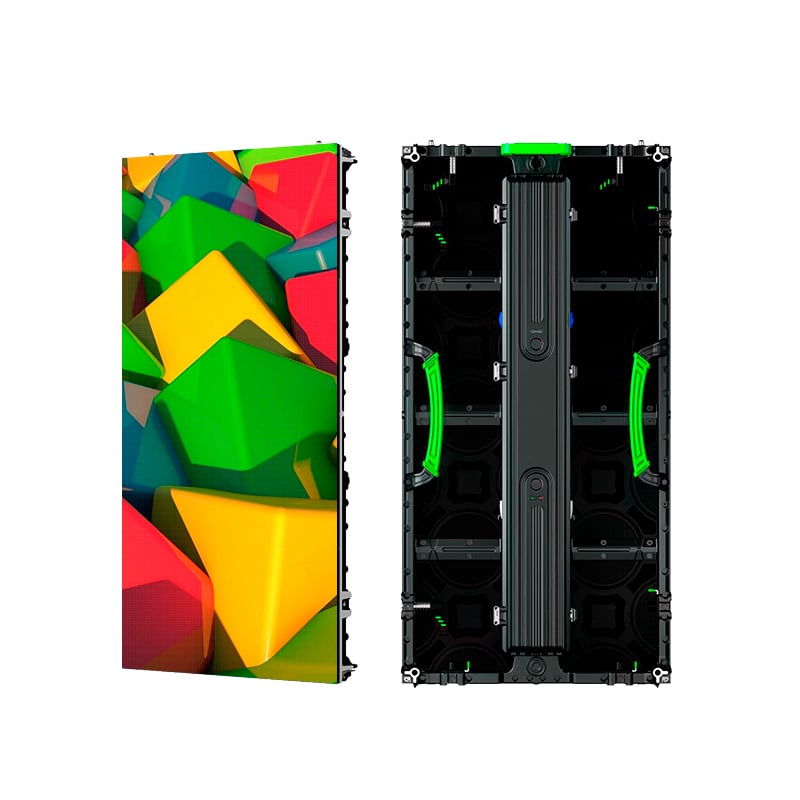

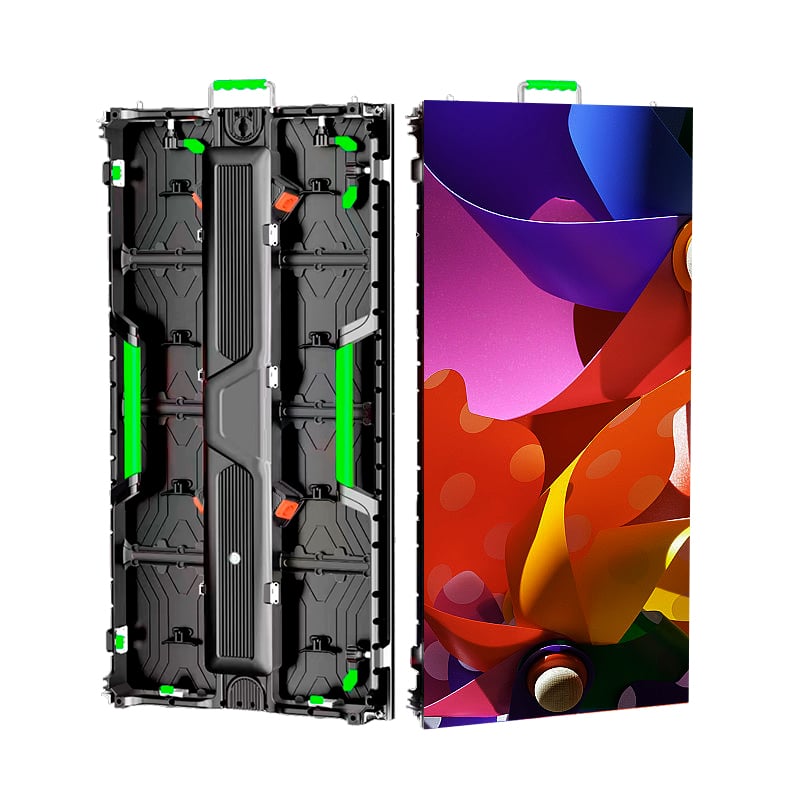

| Cabinet size | 500mm*500mm*85mm / 500mm*1000mm*85mm | ||||
| Cabinets weight | 7.5kg/19.5kg | ||||
| Cabinets resolution | 192*192/ 192*384 | 168*168 168*336 | 128*128 128*256 | 104*104 104*208 | 80*80 80*160 |
| Equilibrium brightness | 900-1100cd/m² | 1200cd/m² | |||
| Power consumption | Max: ≤800W/m², Average: ≤420W/m² | ||||
| Refresh rate | ≥3840Hz (ICN2055 Driving IC) | ||||
| Viewing angle Level | H: ≥160°Optional, V: ≥120°Optional | ||||
| Viewing distance | 3-50m | 4-60m | 6-80m | ||
| Temperature | Working : -25℃~60℃, Storage: -35℃~80℃ | ||||
| Humidity | 10%~90% | ||||
| Working voltage | Input: AC 100V~240V, 50Hz/60Hz, Output: DC 5V | ||||
| Maintenance method | Front/Back service | ||||
| Protection grade | Front: IP40, Back: IP51 | ||||
| Lifetime | 100,000 Hours | ||||

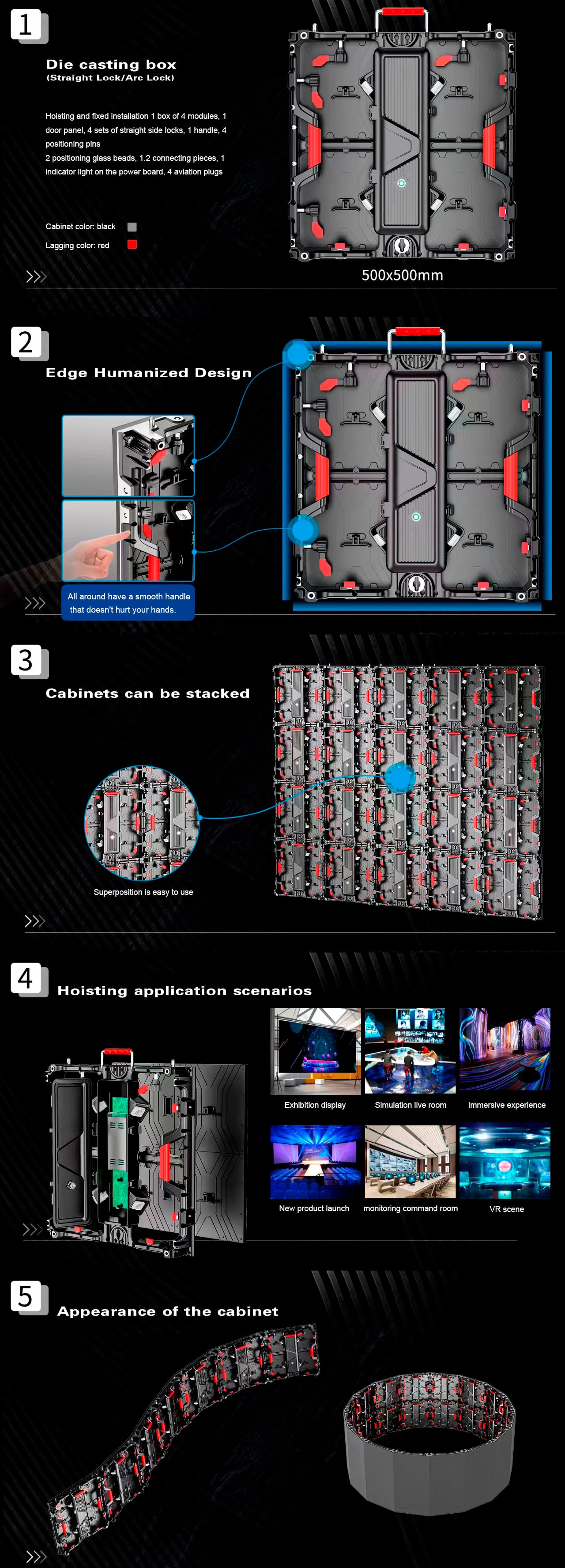

Details:

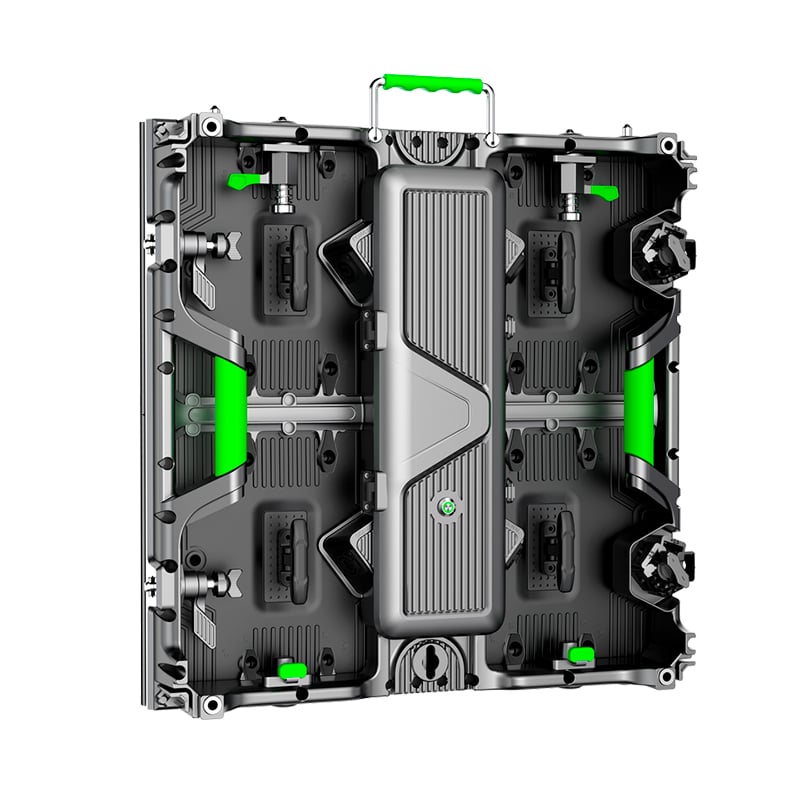

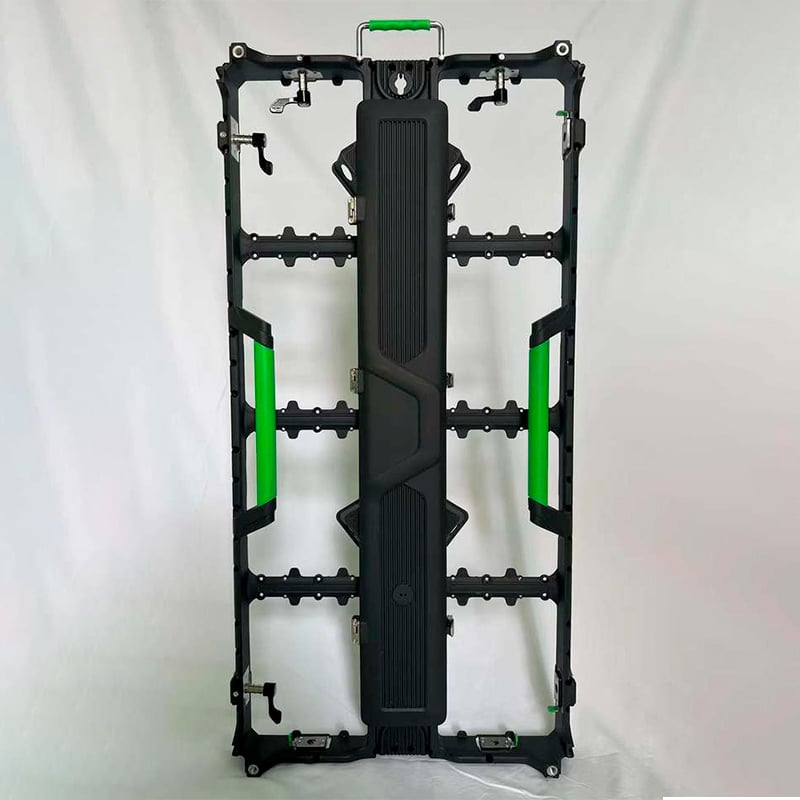

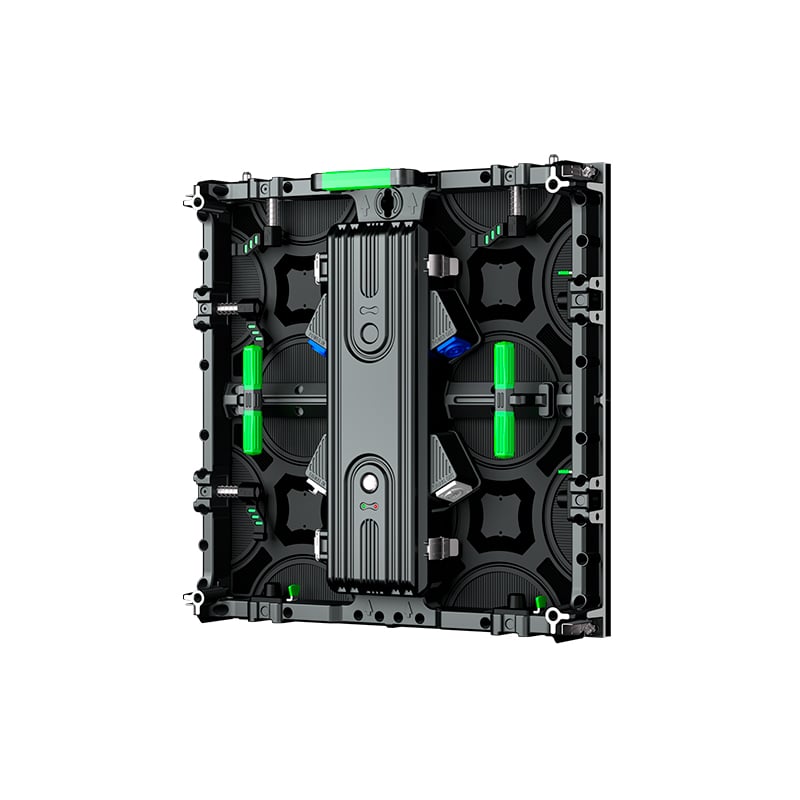

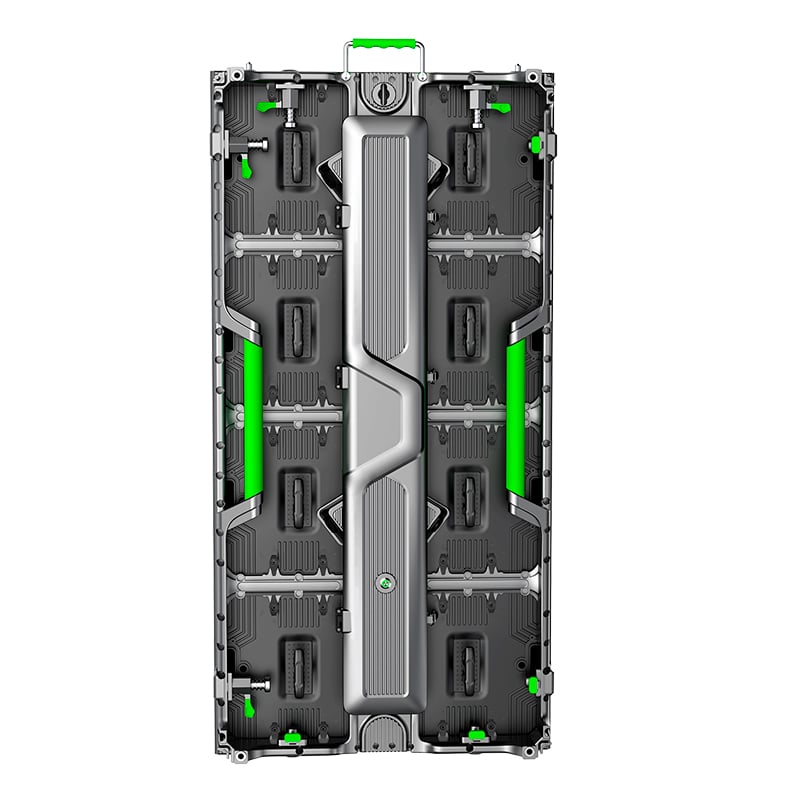

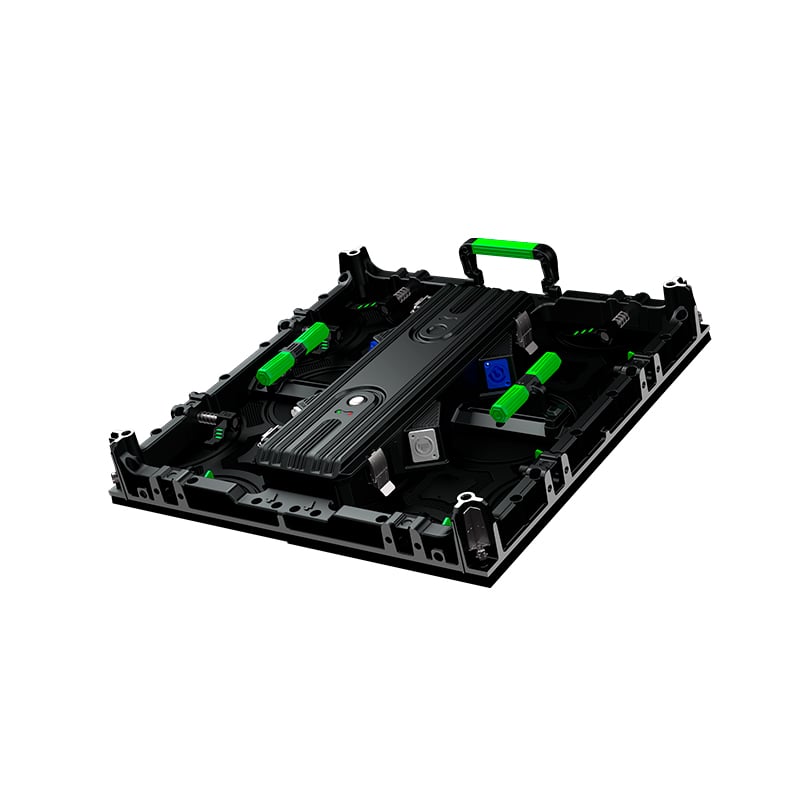

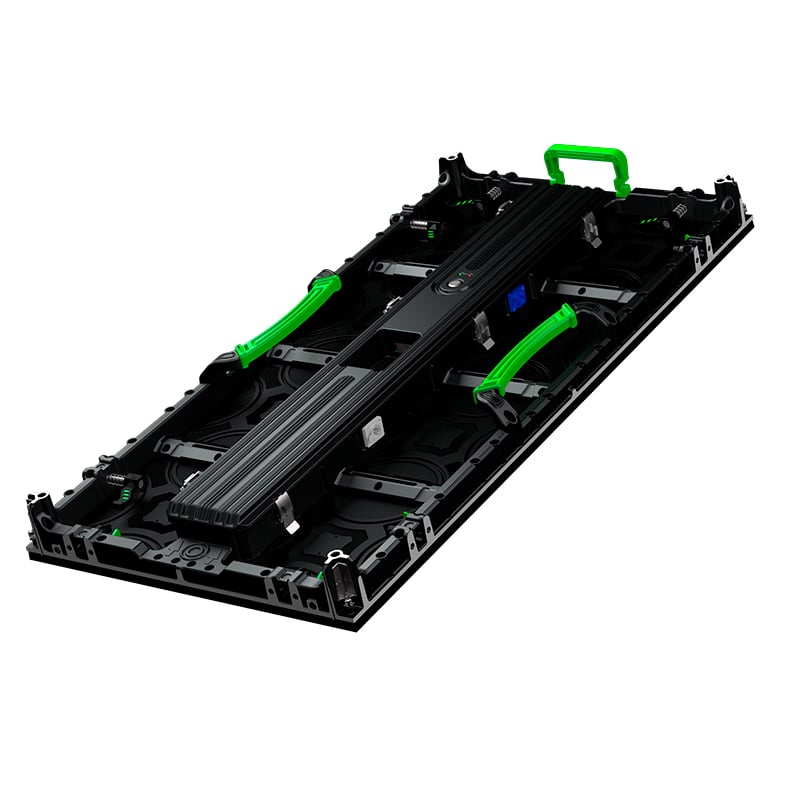

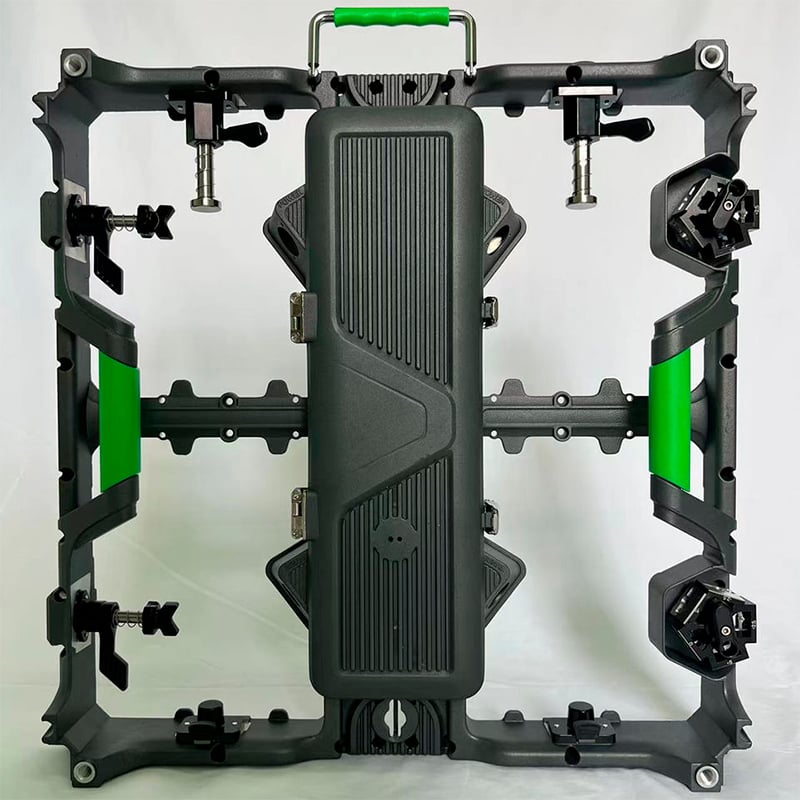

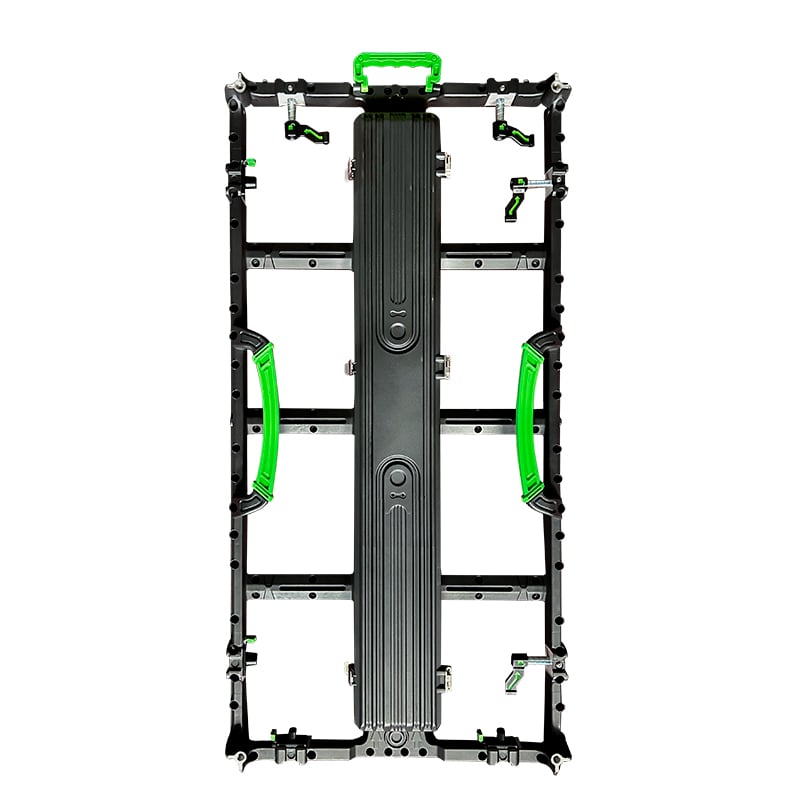

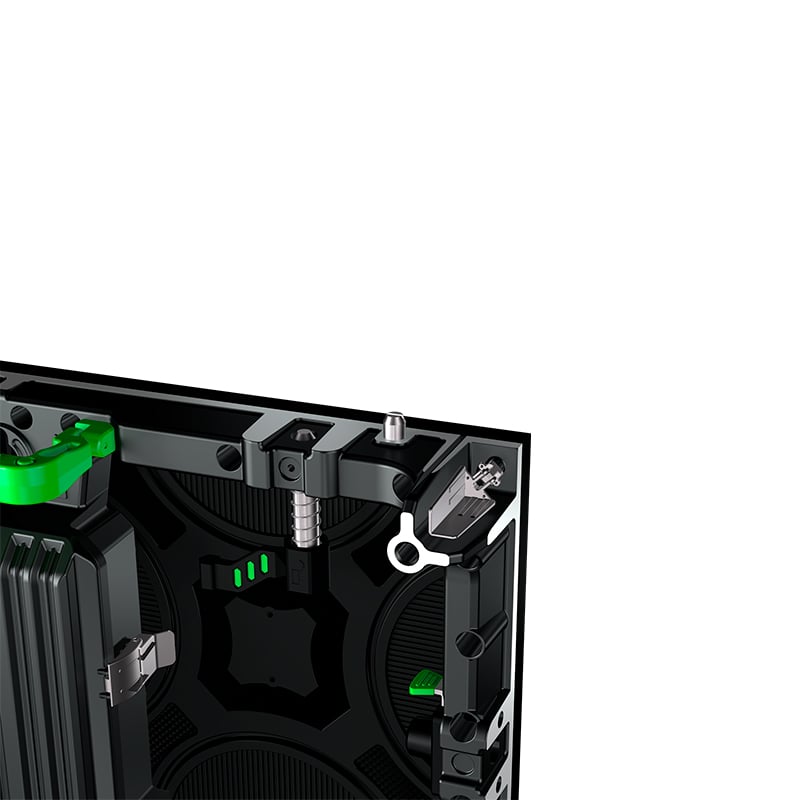

1. Die Casting Cabinet
Hoisting and fixed installation 1 cabinet of 4 modules, 1 middle door panel, 4 sets of straight side locks, 1 handle, 4 positioning pins, 2 positioning glass beads, 1 to 2 connecting pieces, 1 power board, 1 indicator light, 4 aviation plugs;
Cabinet color: black
Lagging color: red

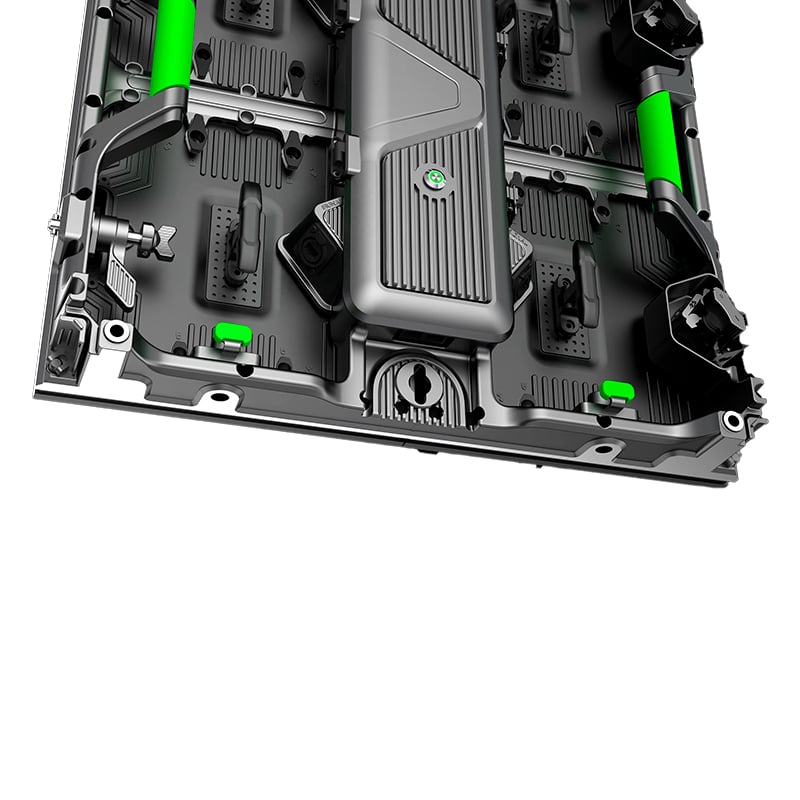

2. Edge Humanized Design
All around have a smooth handle that doesn’t hurt your hands, greatly reduce the collision caused by the cabinet to the customer.

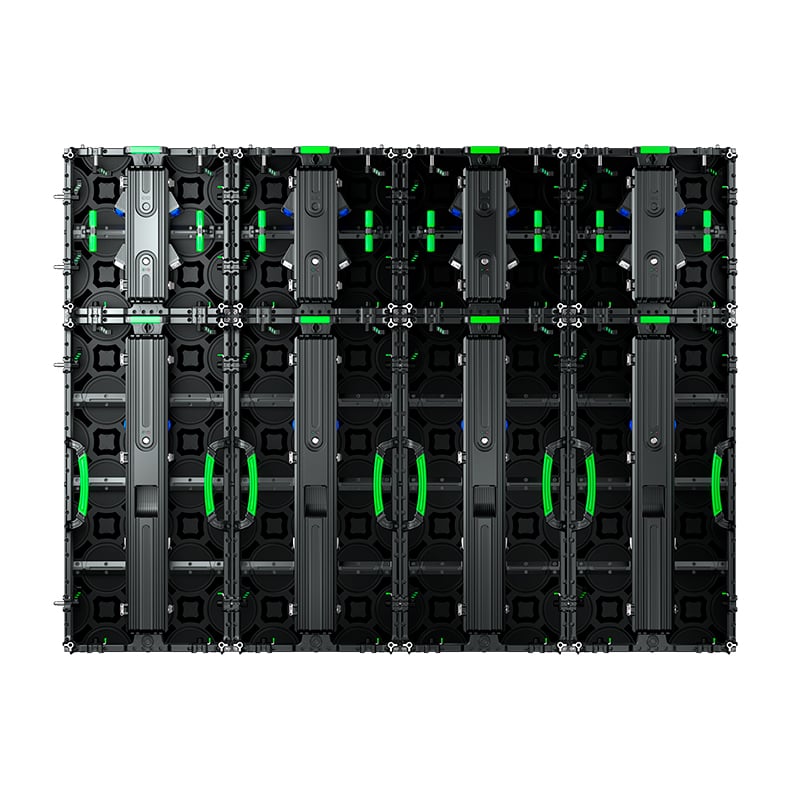

3. The Cabinet Can Be Stacked
The cabinet is connected by a quick connection mechanism, which can be installed with one twist and can be disassembled with one twist and one pull. No tools are required, and it can be assembled in 10 seconds. Meet the needs of hoisting, stacking, and fixed installation. 500*500mm and 500*1000mm can be spliced, making on-site construction more flexible and convenient.
4. Hoisting Application Scenarios
The products have passed CE/SAA certification and are widely used in theaters, conference rooms, showrooms, high-end offices, monitoring rooms, etc.

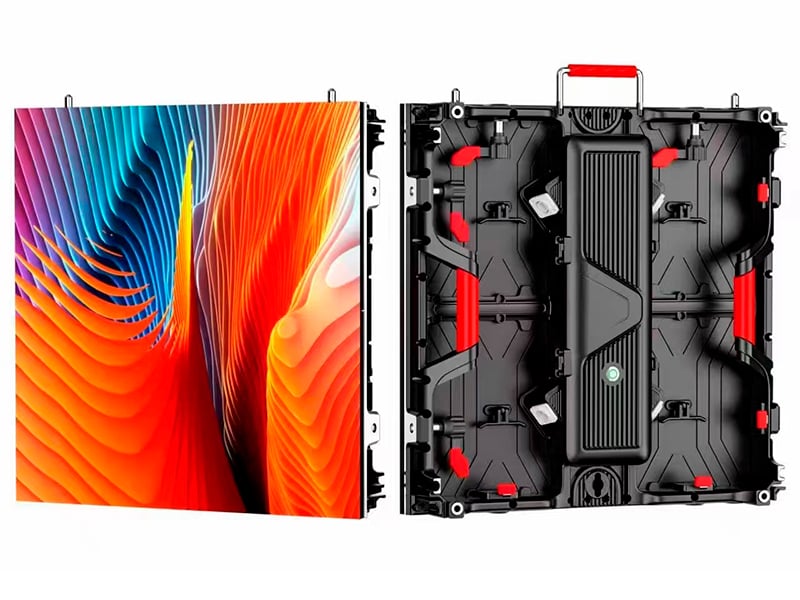

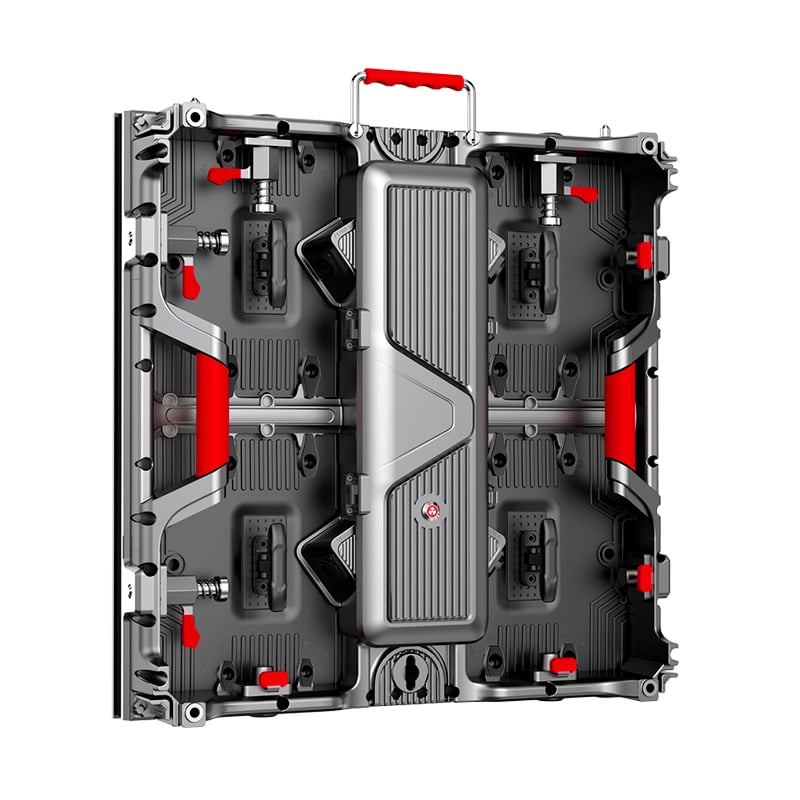

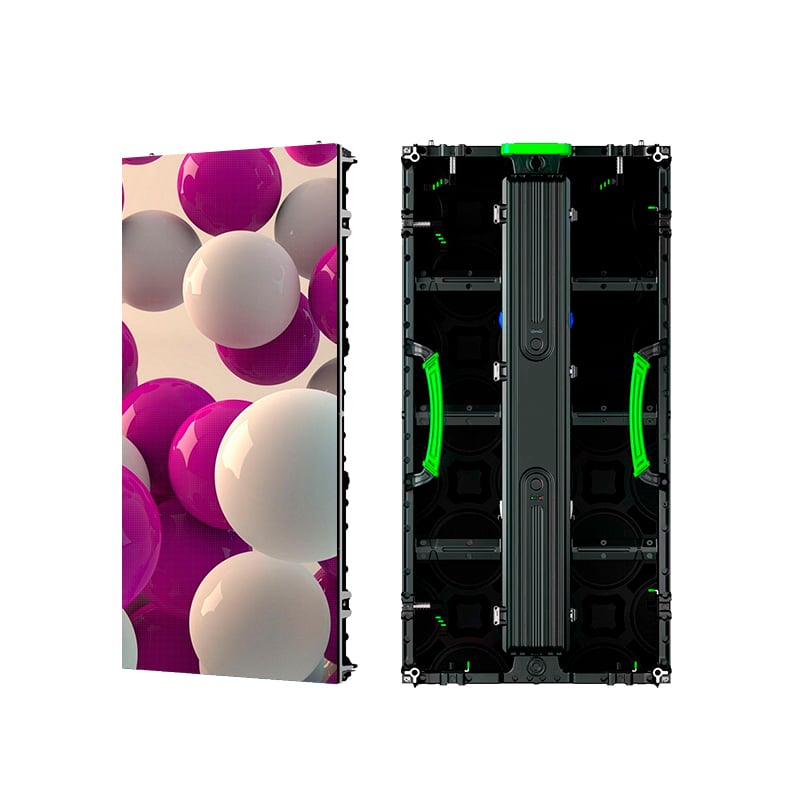

5. Cabinet Appearance
This series of kits are designed to control the splicing error between modules within ±0.1mm, easy to install, and can be made into any shape according to user needs. It can be spliced not only into a regular screen appearance, but also into a cylindrical appearance.

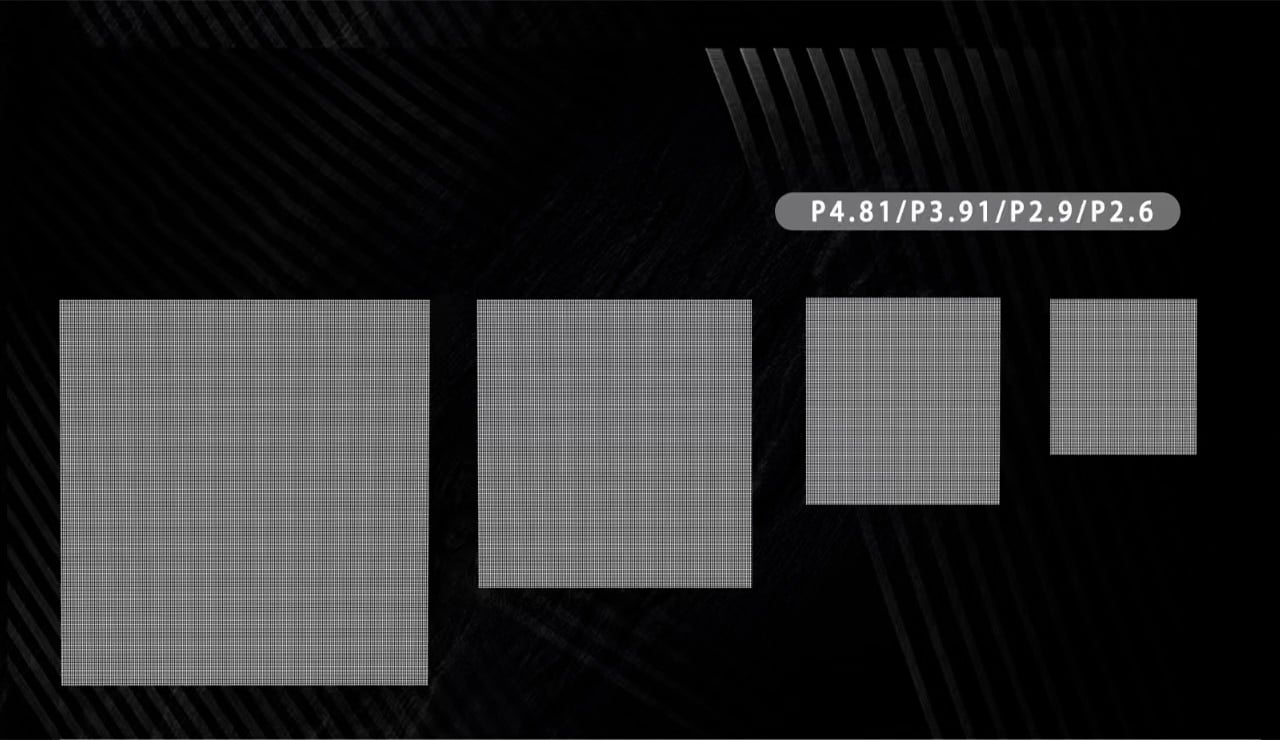

6. Spacing Series
P4.81/P3.91/P2.9/P2.6
We have different models for you to choose from. The smaller the pixel, the better the actual effect presented on the screen. Customers can choose according to the actual application and budget.
